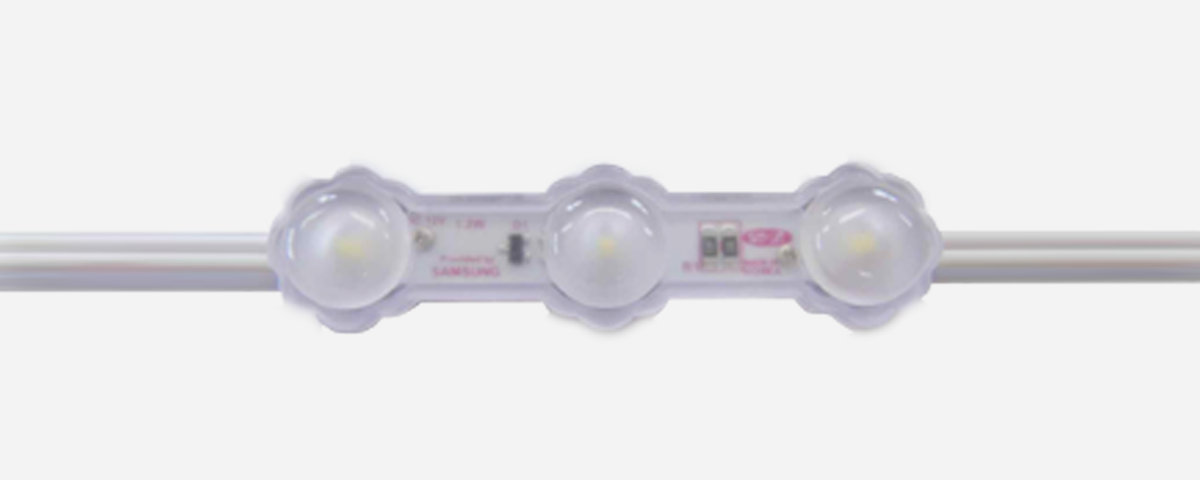

LED MODULE

W3N–SA12F-CW10

Non-polar type
Feature
  • LED SPEC 66.4 x 16.4 x 10.7mm. 12V 3-LED White Module
  • Power Consumption 1.2 W
  • LED provided SamSung LED
  • LED Lens Fabricated with a CAP TYPE Optical Lens
  • Viewing Angle 170˚
  • The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.

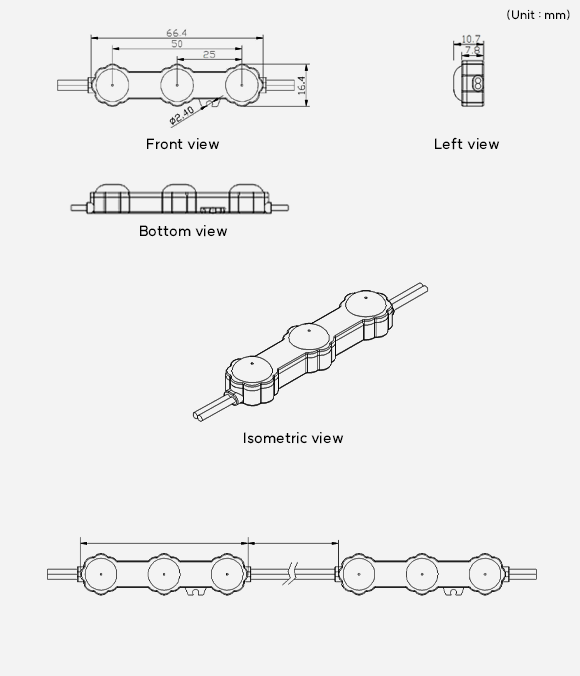

Dimension
