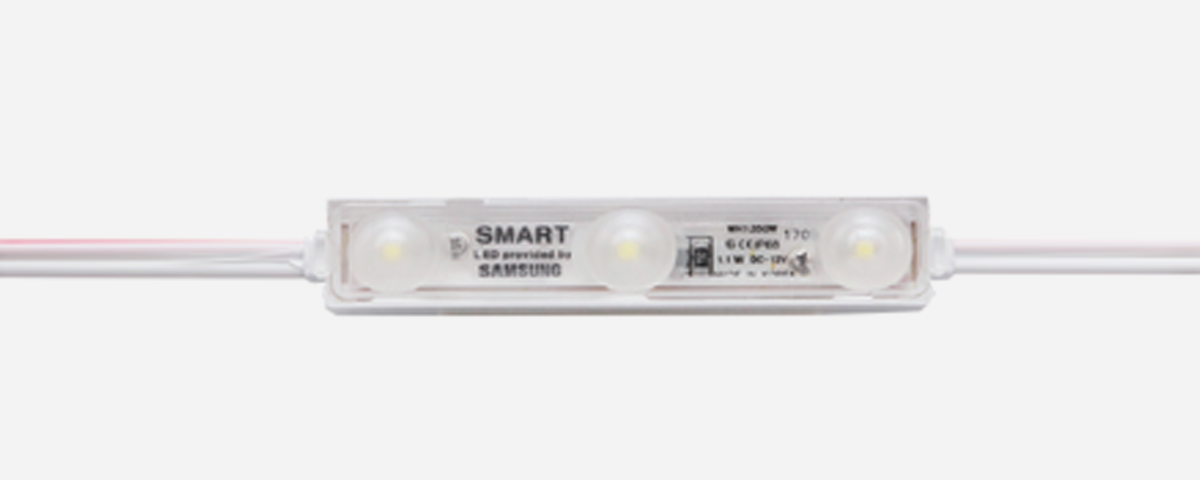

• LED SPEC SAMSUNG LED 2835 pkg
• Non-polarity Circuit without +/- polarity
• Installation Easy attachment with Double-side Tape
• LED life time Long 50,000 hours
• One rank chip Stable without color change
• Waterproof rate IP68 (waterproof 100%)

Model No.	WH1350W
Power consumption	1.1W/120mA
LED color	WHITE LED
Velocity of light (Lumen)	120 lm/module
Supply voltage	DC 12V
Voltage electronic	+/- NONPOLARITY
Color temperature	About 9,000 ~ 10,000k
Operating temperature	-40c ~85c

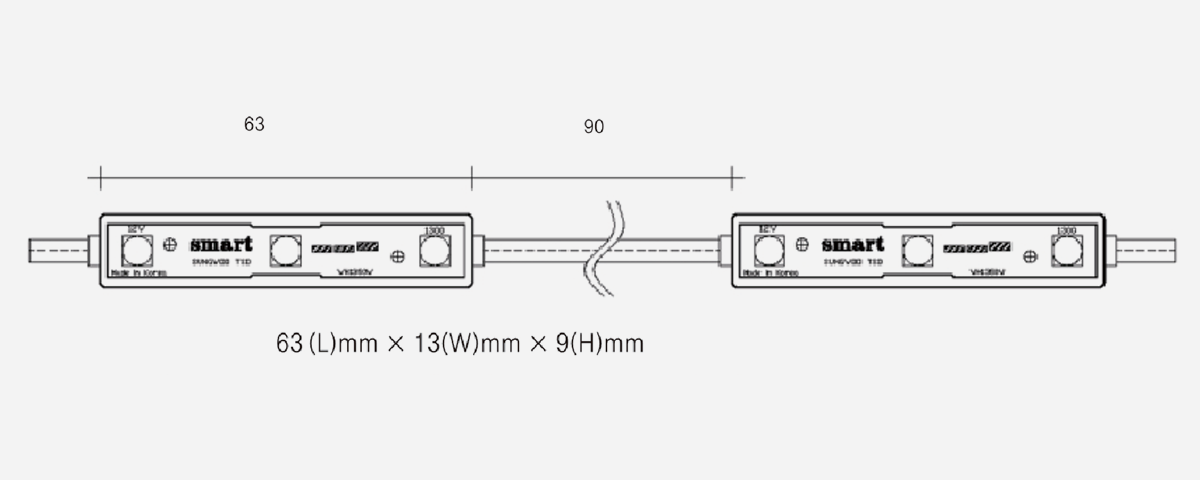

Dimension

Best view angle	160°
LED driver	Constant Voltage Driving System
Diffusion Lens in cap type with unique design

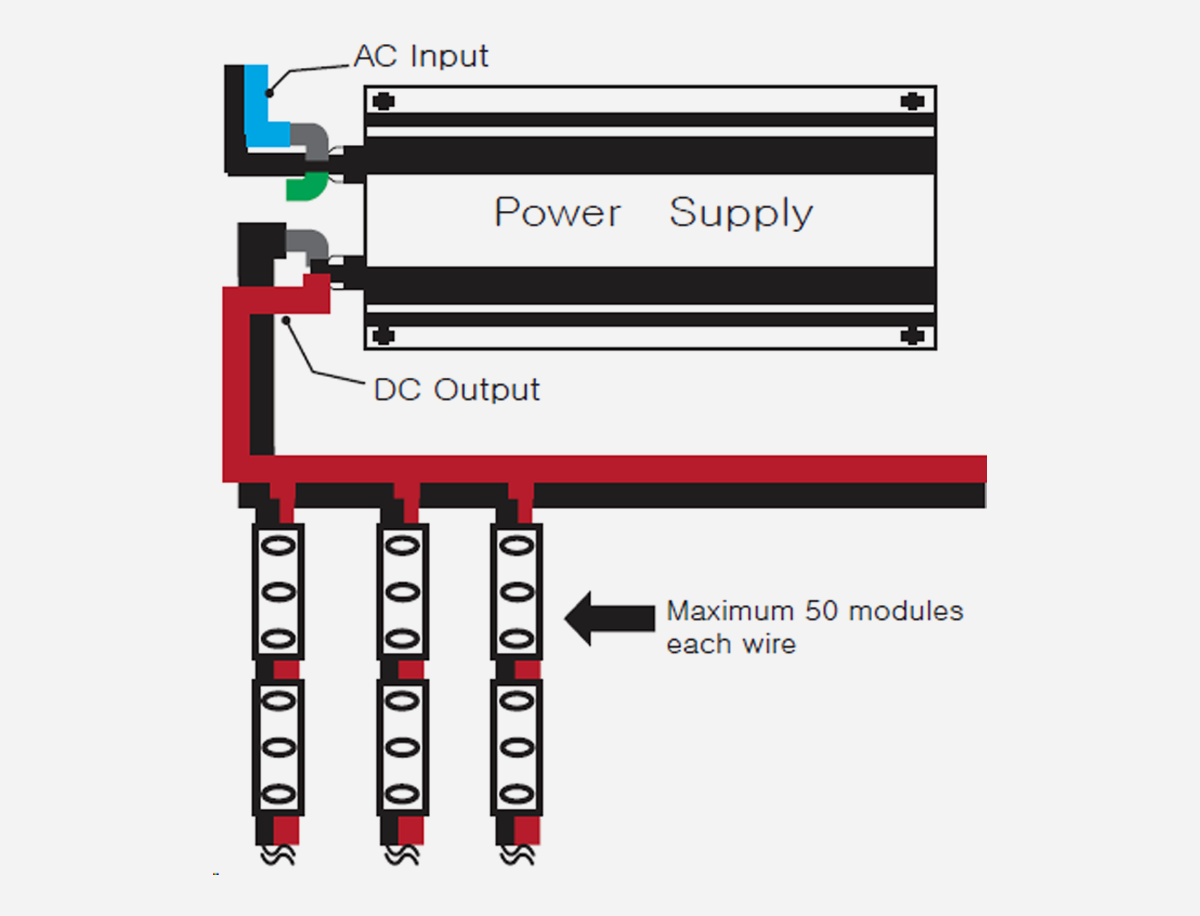

Wiring Guide

Max. in Series	50 modules
Maximum length of module	8M
Can used to cut each module as needed

Luminous Flux Bins(IF = 150 mA, Ts= 25ºC)

Nominal CCT(K)	CRI (Ra)Min.	Product Code	Flux Bin	Flux Range(Φv, lm)	Range(cd)
10000	75	SPMWHT228 FN4BAA0S0	S1	45.0 ~ 50.0	-
			S2	50.0 ~ 55.0	-
			S3	55.0 ~	-

Color Bins (IF = 150 mA, Ts= 25 ºC)

Nominal CCT(K)	CRI (Ra)Min.	Product Code	Color Rank	Chromaticity Bins
10000	75	SPMWHT228 FN4BAA0S0	A0 (Whole bin)	A3, A4
			-	-

Voltage Bins (IF = 150 mA, Ts = 25 ºC)

Nominal CCT(K)	CRI (Ra)Min.	Product Code	Voltage Rank	Voltage Bin	Voltage Range(V)
TOTAL	80	SPMWHT228FN4	BA	A2	2.9 ~ 3.0
				A3	3.0 ~ 3.1
				A4	3.1 ~ 3.2
				A5	3.2 ~ 3.3
				A6	3.3 ~ 3.4

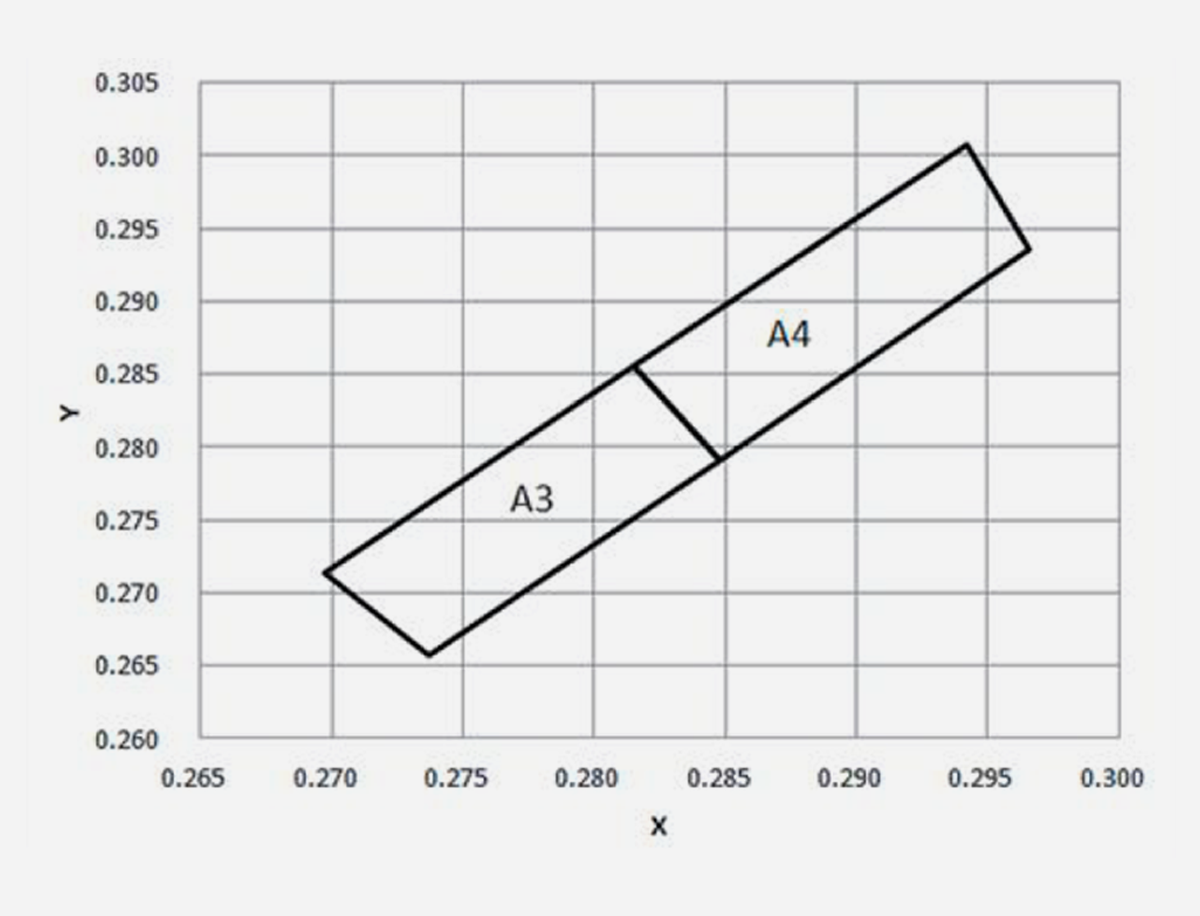

Chromaticity Region & Coordinates (IF = 150 mA, Ts = 25 ºC)

Table	Rank	CIE X	CIE Y
A0	A3	0.2737	0.2657
		0.2848	0.2791
		0.2815	0.2855
		0.2697	0.2713
	A4	0.2848	0.2791
		0.2966	0.2935
		0.2942	0.3008
		0.2815	0.2855

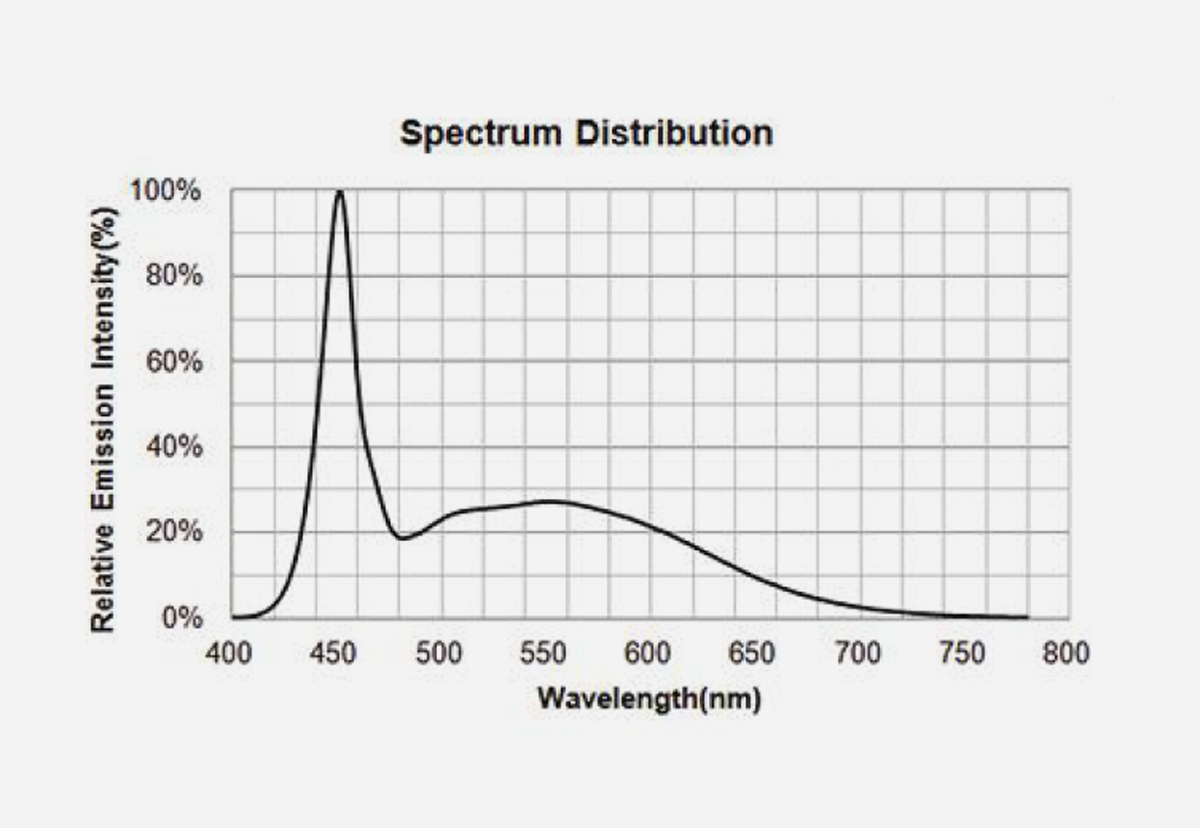

Spectrum Distribution (IF = 150 mA, Ts = 25 ºC)CCT: 10000 K(75 CRI)

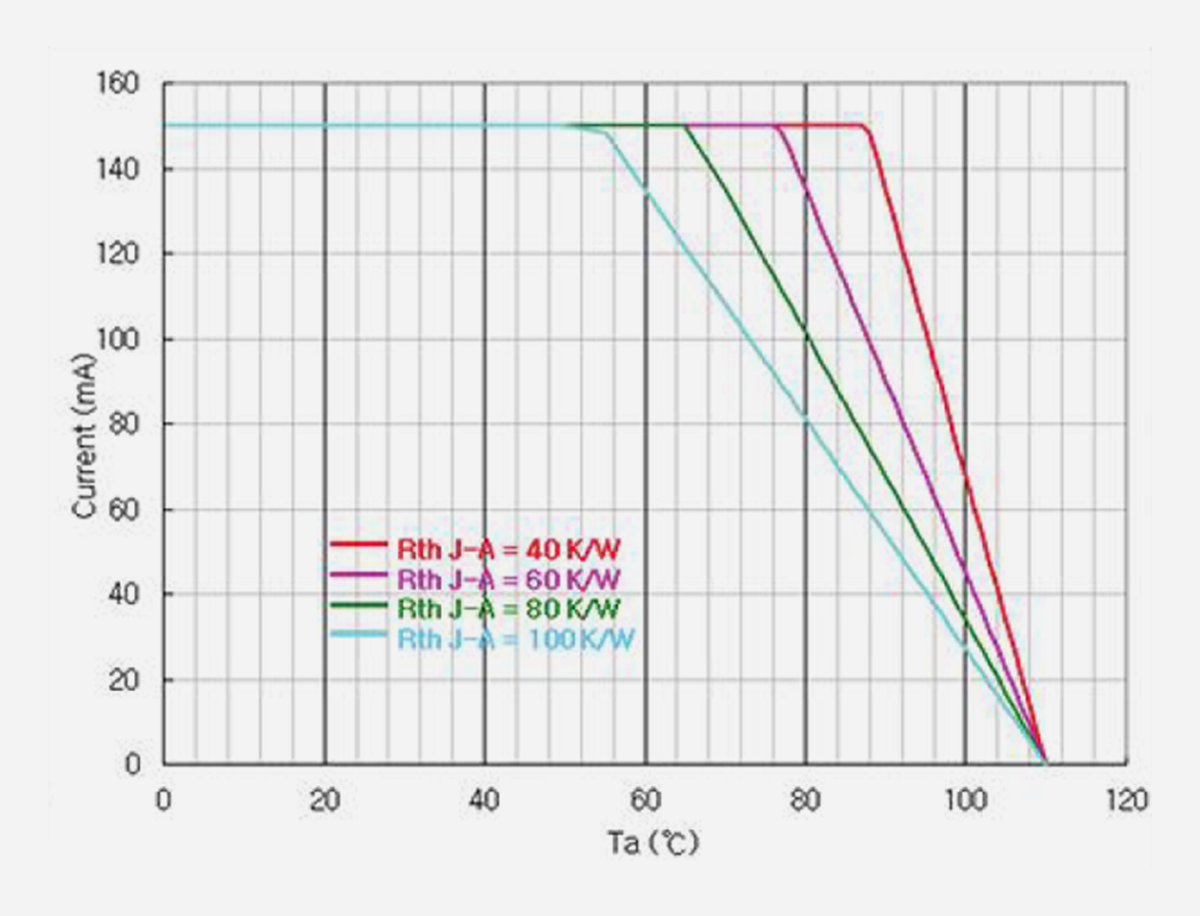

Derating curve

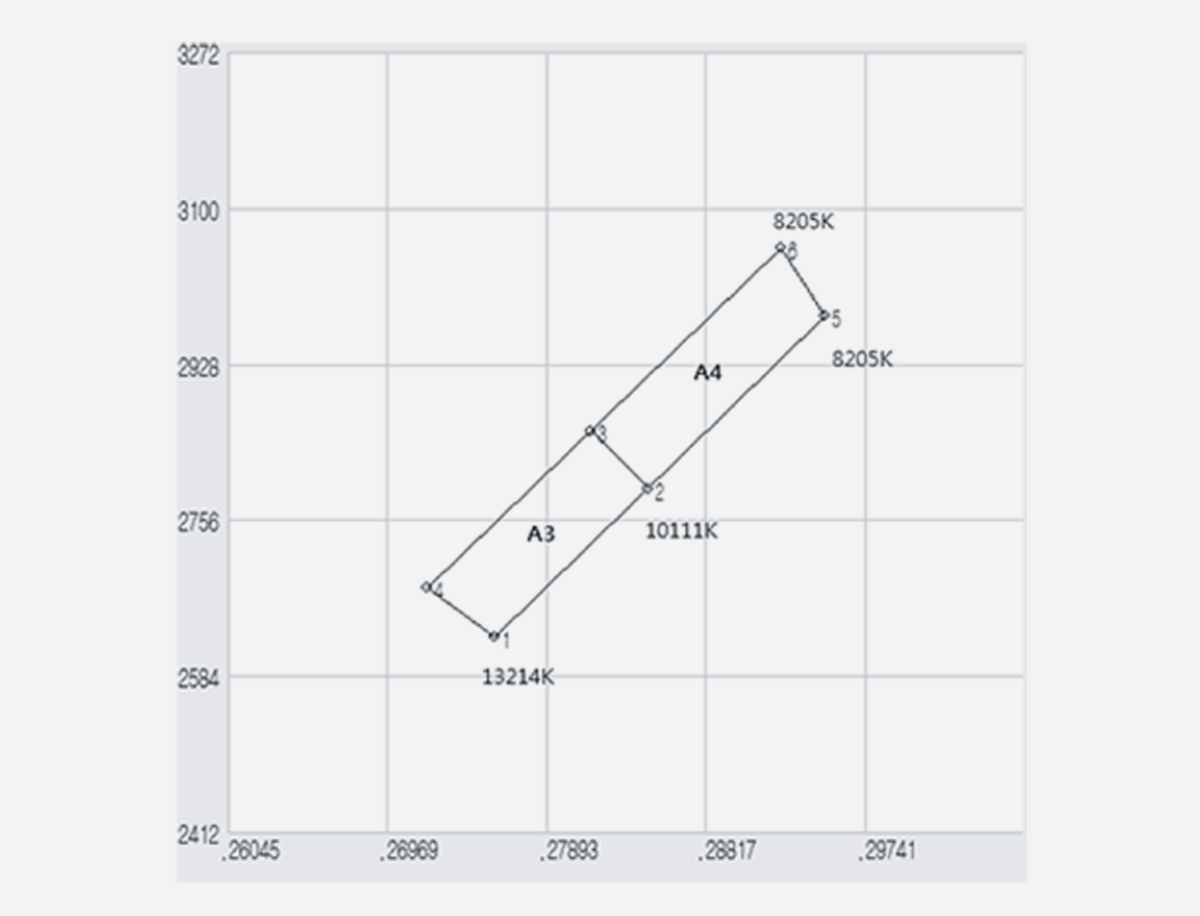

Color Temperature Distribution

CCT Rank

A3 (10111K ~ 13214K)
Coordinate NO.	X	Y	Color Temperature
Coordinate 1	0.2759	0.2627	13214K
Coordinate 2	0.2848	0.2791	10111K
Coordinate 3	0.2815	0.2855	10111K
Coordinate 4	0.2720	0.2681	13214K

A4 (8205K ~ 10111K)
Coordinate NO.	X	Y	Color Temperature
Coordinate 2	0.2848	0.2791	10111K
Coordinate 3	0.2815	0.2855	10111K
Coordinate 5	0.2951	0.2981	8205K
Coordinate 6	0.2926	0.3057	8205K

• 1. IV (iF=60mA) : min 6.2 cd ~ typ 7.3 cd ~ max 8.6 cd
• 2. vF : 2.9 ~ 3.4 (0.1v Rank Sort)
