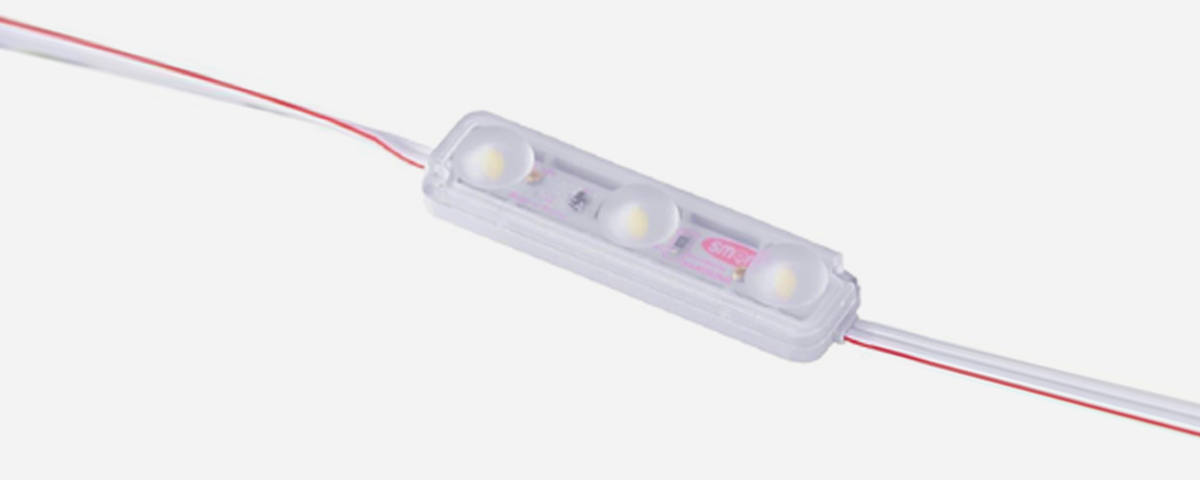

• LED SPEC 63 x 16 x 9.2mm. 12V 3-LED WhiteModule
• Power Consumption 1.2 W
• LED provided SamSung LED
• LED Lens Fabricated with a CAP TYPE Optical Lens
• Viewing Angle 170˚

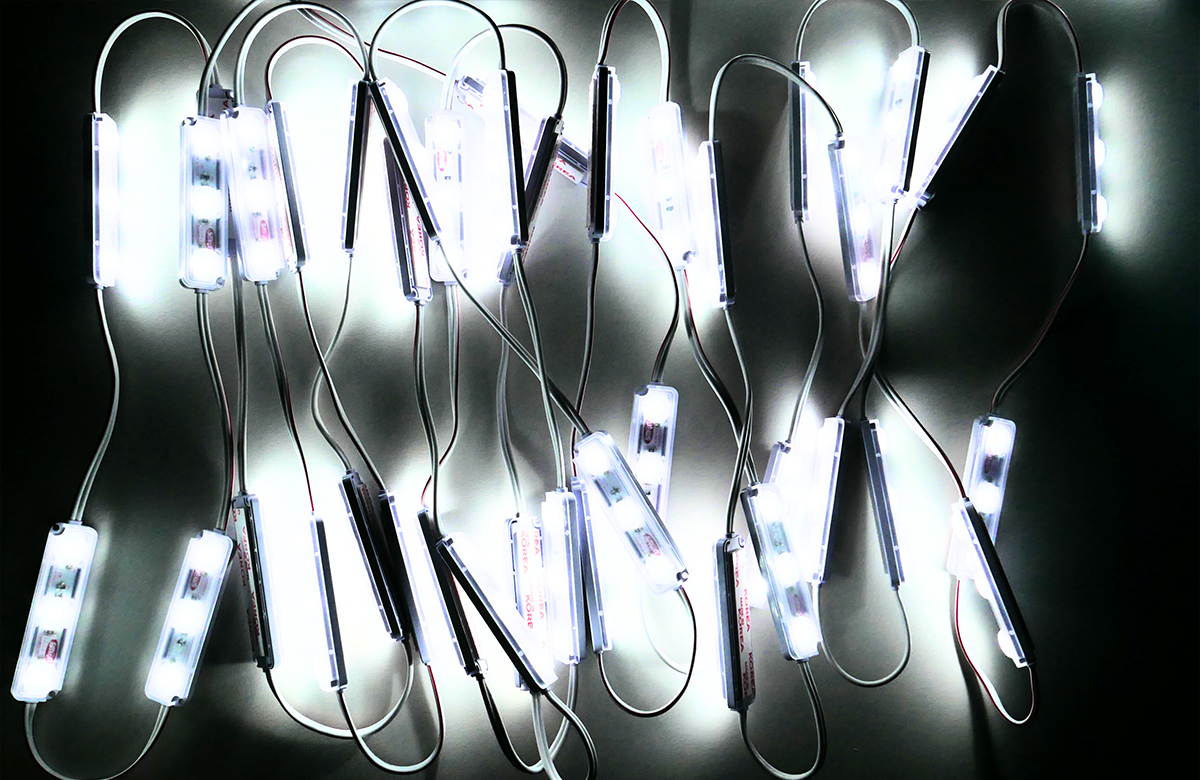

• The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.

Electro-Optical Characteristics(Ta=25℃)

Parameter	Condition	Value (typ.)	Unit	Remark
Power Dissipation	Vf = 12VDC	1.2	W	-
Forward Current		100	mA
Color		White / 10000	K
Luminous Flux		129	lm
Luminous Efficiency		108	lm/W
Viewing Angle		160	˚

Mechanical Characteristics(Ta=25℃)

Parameter	Value	Remark
LED Chip	SMD 2835 Type x 3EA	SamSung LED
Connection	Wire to Wire (90mm)	Parallel Connection
Double side Tape	PE Foam
Cable	CCA 0.75 SQMM
Case materials	ABS White
Lens materials	ABS Clear

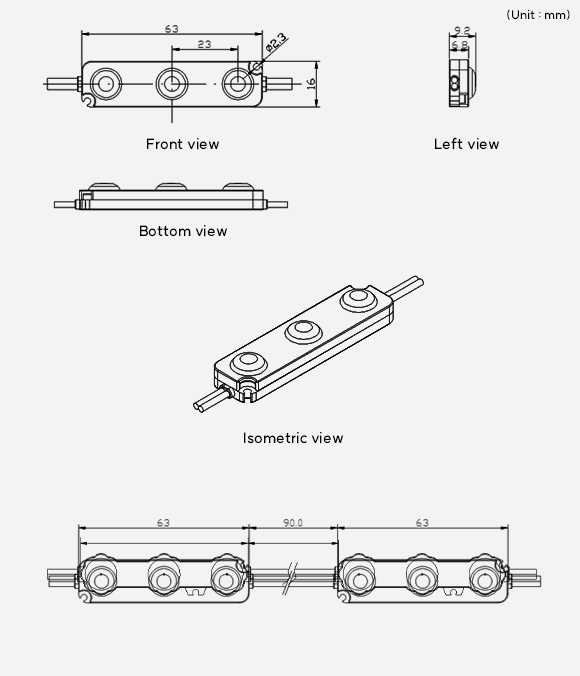

Dimension	63mm(W) x 16mm(L) x 9.2mm(H)
Operation Temp. (°C)	-20 ~ 70 °C

• 1. SMART LED maintains a tolerance of ± 10 % on intensity and power measurements.
• 2. The products are sensitive to static electricity and must be carefully taken when handling products.
• 3. Calculated performance values are for reference only.
• 4. All measurements were made under the standardized environment of SMART LED..
