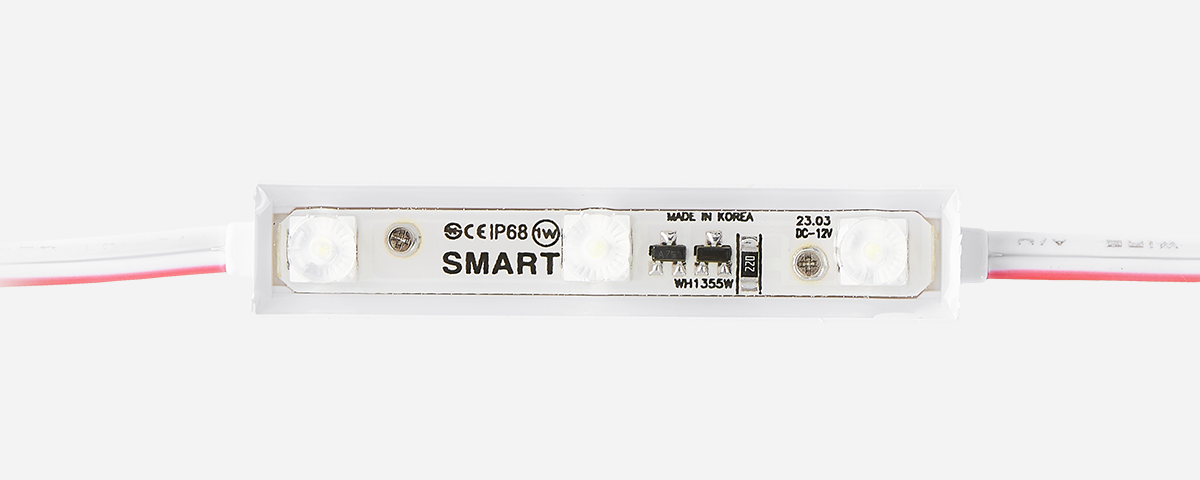

| Model No. | WH1355W |
| Power consumption | 1W/120mA |
| LED color | WARM WHITE |
| Velocity of light (Lumen) | 120 lm/module |
| Supply voltage | DC 12V |
| Voltage electronic | POLARITY |
| Color temperature | 3,000k |
| Operating temperature | -20c ~80c |
| Best view angle | 160° |
| LED driver | Constant Voltage Driving System |
| Diffusion Lens in cap type with unique design | |

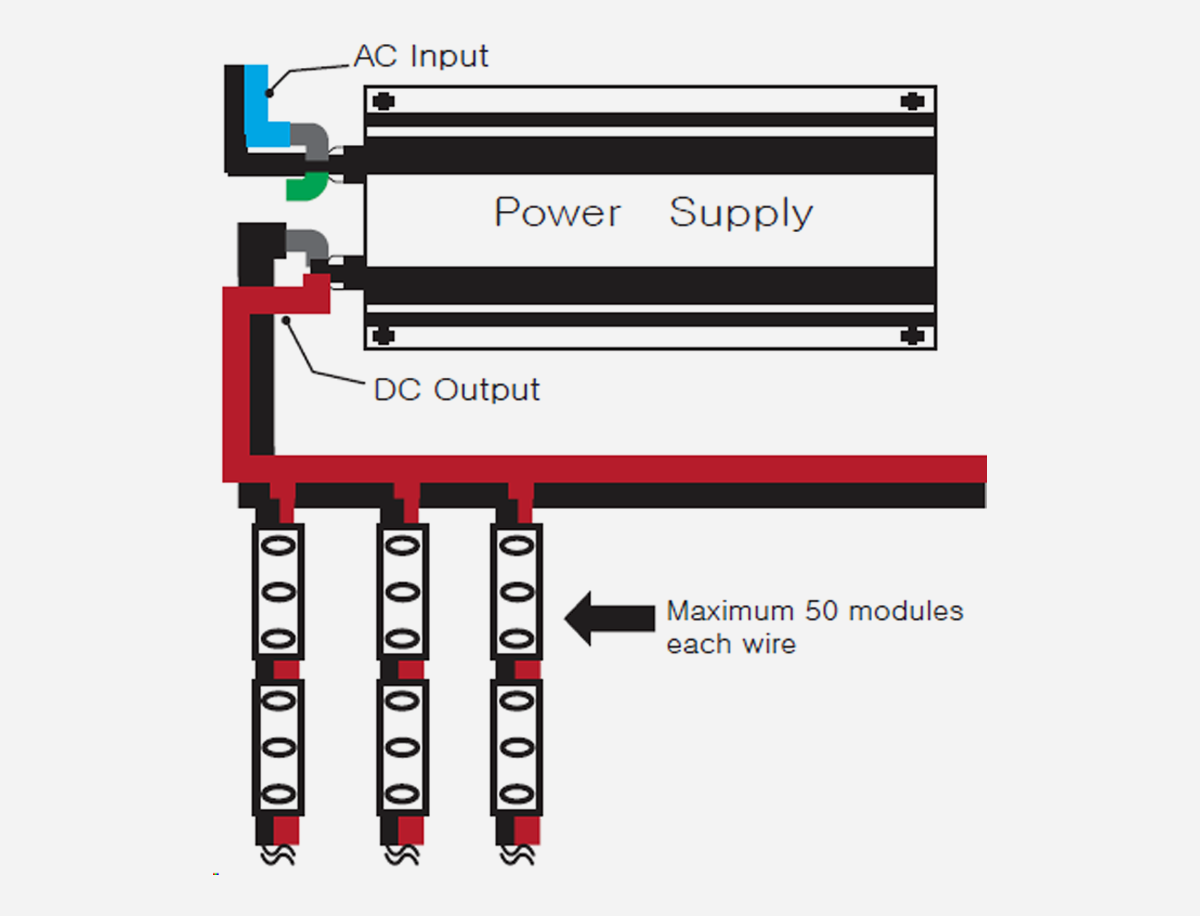

| Max. in Series | 50 modules |
| Maximum length of module |
8M |
| Can used to cut each module as needed | |

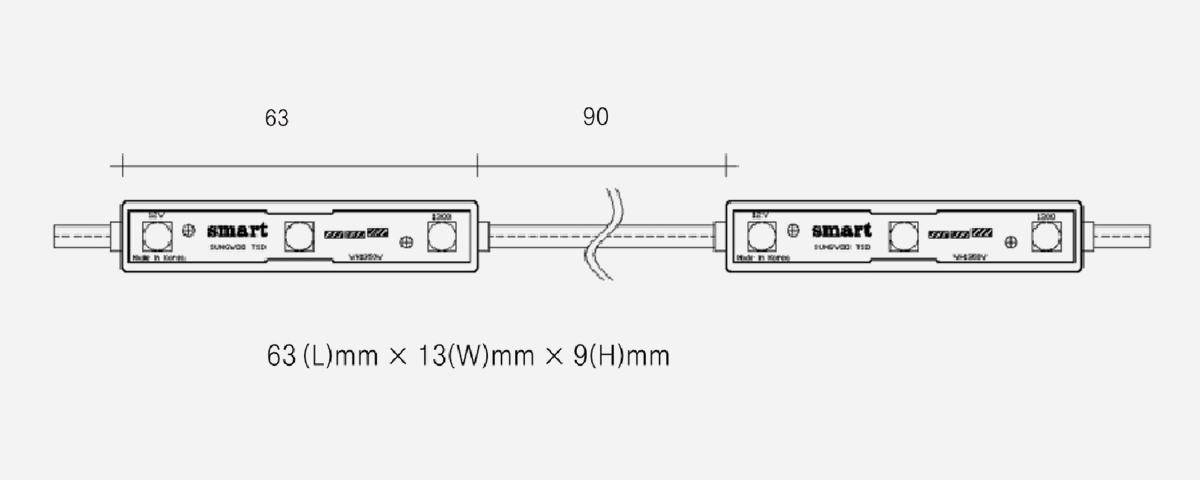

| Chip Size | 6.0mm×6.0mm×2.75mm Dimension |
| Color Rendering (Ra) | 70 |
| Wide viewing angle | 160° |
| RoHS compliant | |
| Soldering Temperature | |
| LED thermal resistance 15-20℃/W | |
| It is recommended that the current should not exceed 280 mA | |
| Advertising Lamp Box |
| General Use |
