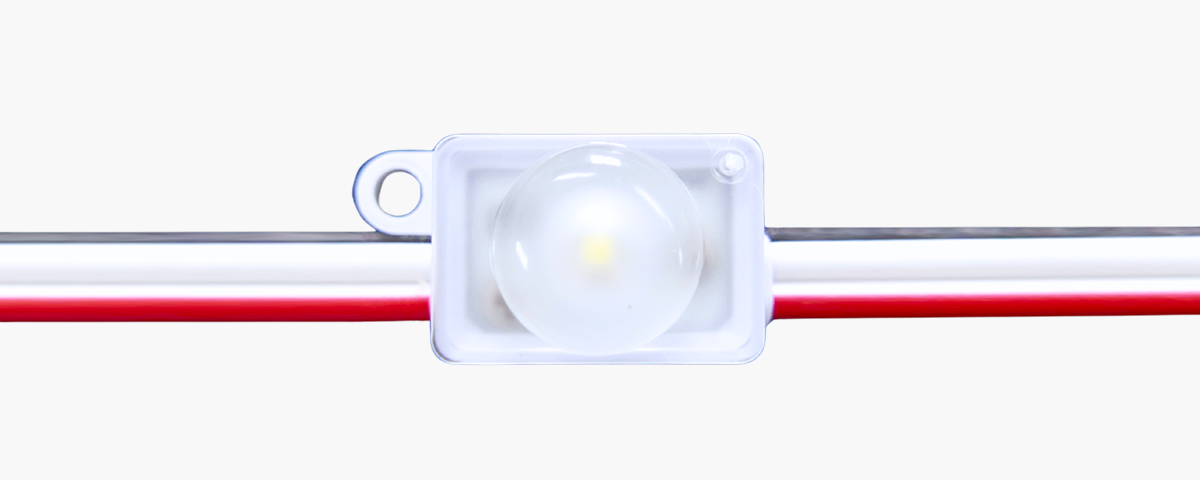

• LED SPEC 13 x 9 x 7.7mm. 12V 1-LED White Module
• Power Consumption 0.36 W
• LED provided DKI CO., LTD. LED
• LED Lens Fabricated with a CAP TYPE Optical Lens
• Viewing Angle 160˚

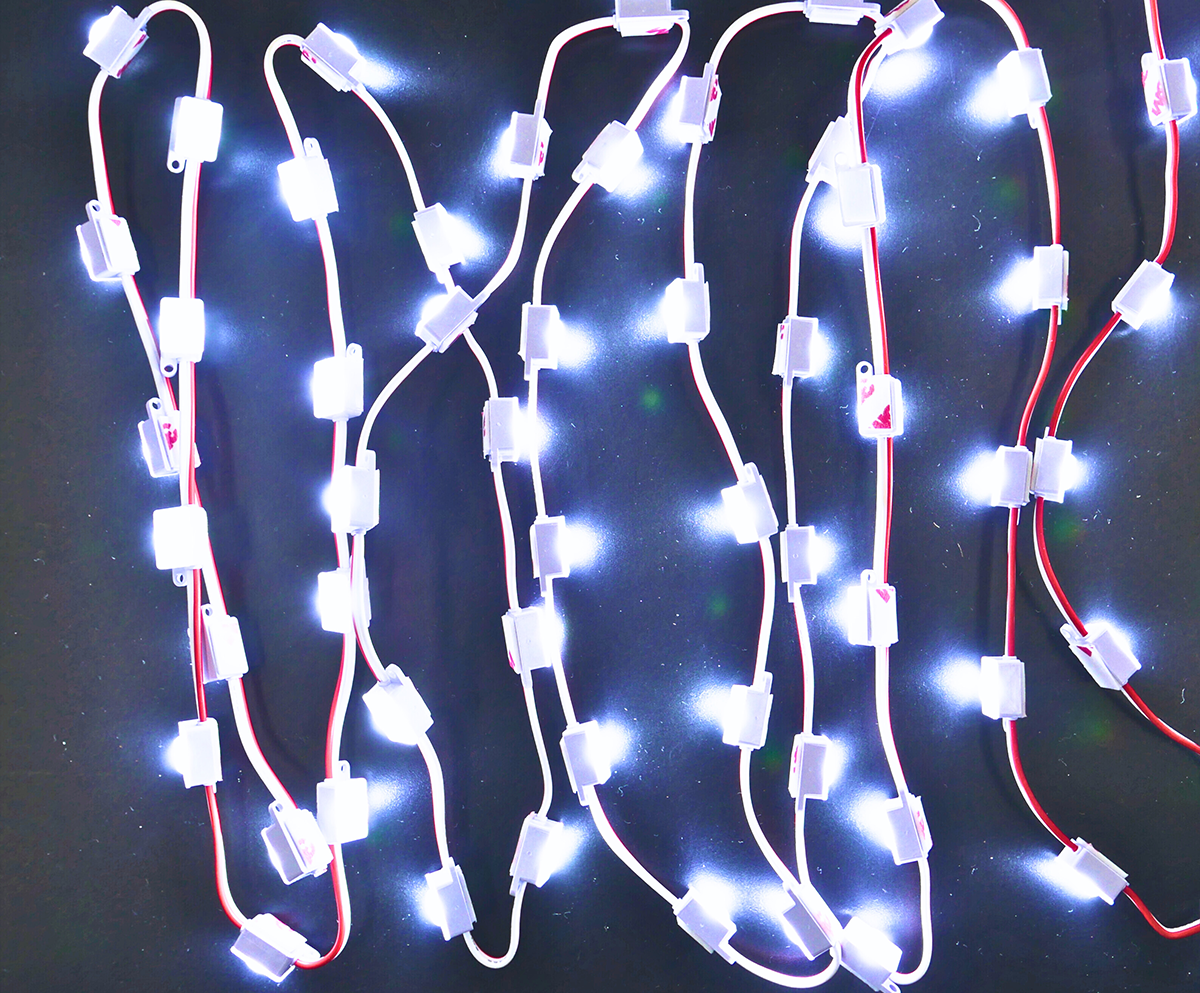

• The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.

Electro-Optical Characteristics(Ta=25℃)

Parameter	Condition	Value (typ.)	Unit.	Remark
Power Dissipation	Vf = 12VDC	0.36	W	-
Forward Current		30	mA
Color		White / 10000	K
Luminous Flux		36	lm
Luminous Efficiency		100	lm/W
Viewing Angle		160	˚

Mechanical Characteristics(Ta=25℃)

Parameter	Value	Remark
LED Chip	SMD 2835 Type x 1EA	DKI LED
Connection	Wire to Wire (35mm)	Parallel Connection
Double side Tape	PE Foam	3M
Cable	UL 2468 #22
Case materials	ABS White
Lens materials	ABS Clear

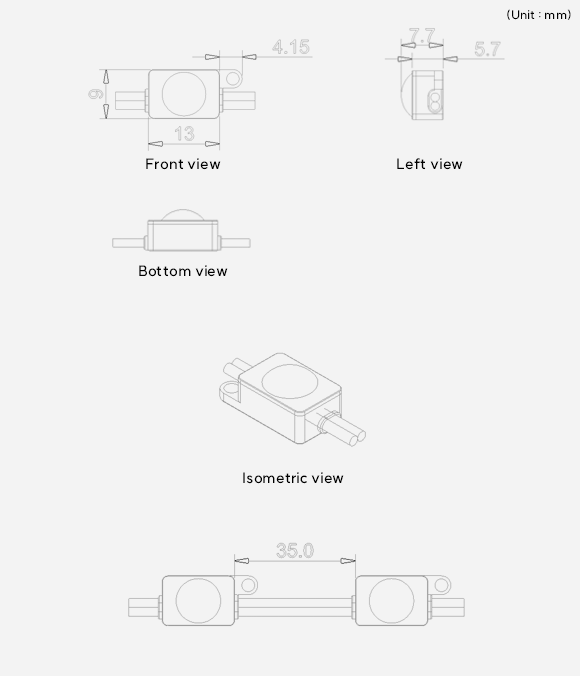

Dimension	13mm(W)x 9mm(L) x 7.7mm(H)
Operation Temp. (°C)	-20 ~ 65 °C

• 1. SMART LED maintains a tolerance of ± 10 % on intensity and power measurements.
• 2. The products are sensitive to static electricity and must be carefully taken when handling products.
• 3. Calculated performance values are for reference only.
• 4. All measurements were made under the standardized environment of SMART LED..
