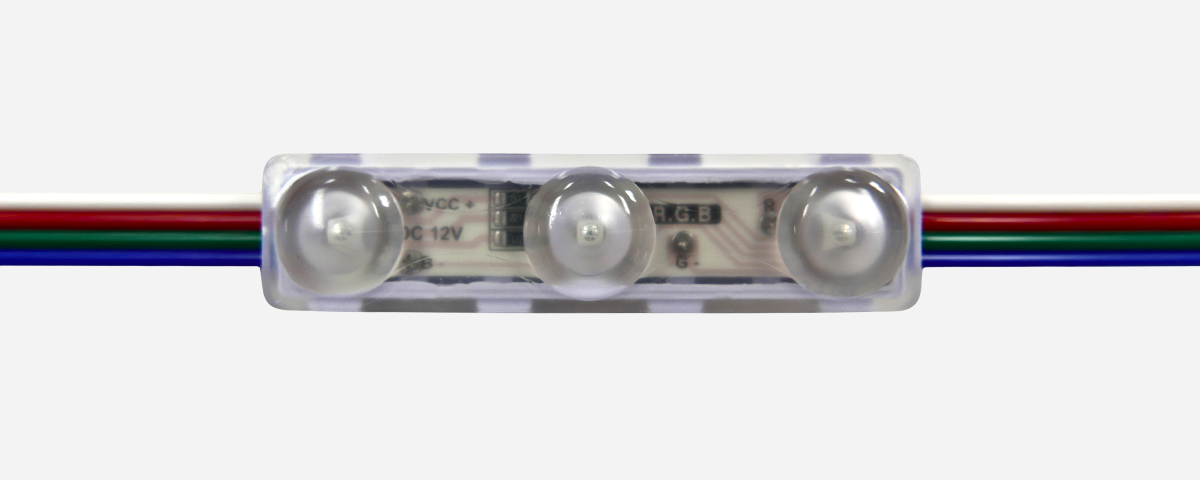

• LED SPEC 66 x 16 x 10.7mm. 12V 3-LED Full Color Module
• Power Consumption 0.72 W
• LED provided DKI CO., LTD. LED
• LED Lens Fabricated with a CAP TYPE Optical Lens
• Viewing Angle 160˚
• The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.

Electro-Optical Characteristics(Ta=25℃)

Parameter	Condition	Value			Unit.	Remark
Power Dissipation	Vf = 12VDC	0.72			W	3 Chip - On
Forward Current		Red	Green	Blue	mA
		22	20	18
Color		Full Color			nm	3 Chip - On
		Red	Green	Blue
		620~625	520~525	460~465
Luminous Flux		31.5			lm	3 Chip - On
		Red	Green	Blue
		7.5	19.5	4.5
Luminous Efficiency		43.74			lm/W	3 Chip - On
		Red	Green	Blue
		10.41	27.09	6.24
Viewing Angle		160			˚

Mechanical Characteristics(Ta=25℃)

Parameter	Value	Remark
LED Chip	SMD 5450 Type x 3EA	DKI LED
Connection	Wire to Wire (90mm)	Parallel Connection
Double side Tape	PE Foam	3M
Cable	UL CCA 0.75 SQMM
Case materials	ABS White
Lens materials	ABS Clear
Waterproofing, Dimension	IP68, 66mm(W) x 16mm(L) x 10.7mm(H)
Operation Temp. (°C)	-20 ~ 70 °C

• 1. SMART LED maintains a tolerance of ± 10 % on intensity and power measurements.
• 2. The products are sensitive to static electricity and must be carefully taken when handling products.
• 3. Calculated performance values are for reference only.
• 4. All measurements were made under the standardized environment of SMART LED..
