LED MODULE

W3N –SA12SU - CW10

Non-polar type.
Feature

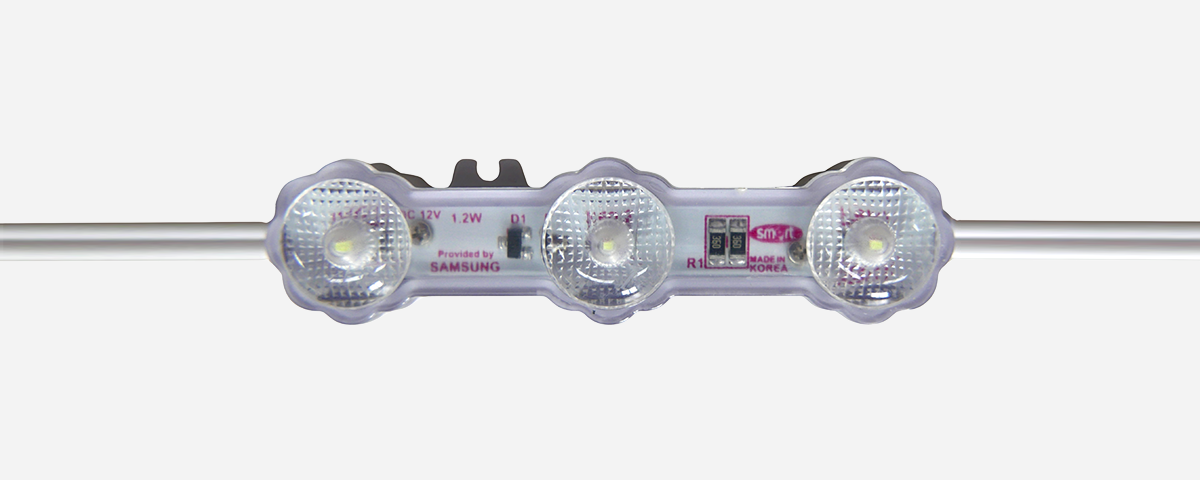

  • LED SPEC 66.4 x 16.4 x 10.7mm. 12V 3-LED White Module
  • Power Consumption 1.2 W
  • LED provided SamSung LED
  • LED Lens Fabricated with a CAP TYPE Optical Lens
  • Viewing Angle 180˚
  • The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.

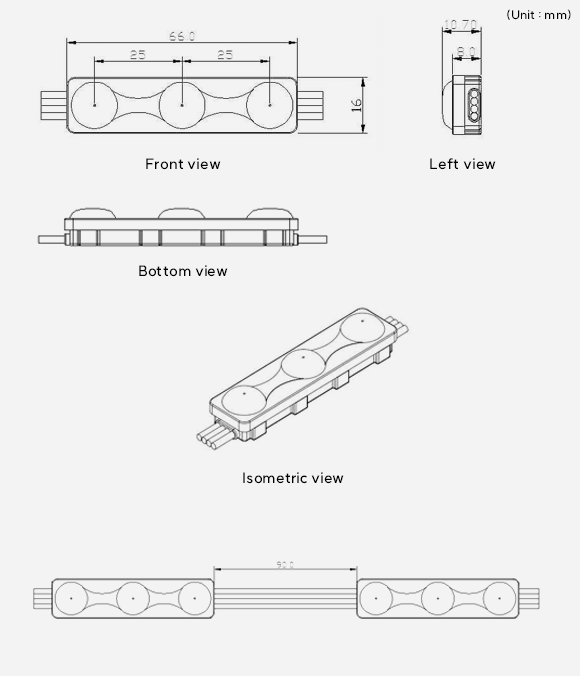

Dimension
Specifications

Electro-Optical Characteristics(Ta=25℃)

Parameter Condition Value (typ.) Unit. Remark
Power Dissipation Vf = 12VDC 1.2 W -
Forward Current 100 mA
Color White / 10000 K
Luminous Flux 125 lm
Luminous Efficiency 108 lm/W
Viewing Angle 180 ˚

Mechanical Characteristics(Ta=25℃)

Parameter Value Remark
LED Chip SMD 2835 Type x 3EA SamSung LED
Connection Wire to Wire (90mm) Parallel Connection
Double side Tape PE Foam 3M
Cable CCA 0.75 SQMM
Case materials ABS White
Lens materials ABS Clear
Dimension 66.4mm(W) x 16.4mm(L) x 10.7mm(H)
Operation Temp. (°C) -20 ~ 70 °C
